CNS SUH1

Grades | Stainless Steels | SUH1

CNS SUH1 ( Martensite )

PDF | Word | Print

SUH1 Application:CNS standard heat resistant steel bar steel grade and chemical composition

Chemical composition(mass fraction)(wt.%) of the SUH1
Elements Min.（≥） Max.（≤） Similar Remarks
C 0.40 0.50
Si 3.00 3.50
Mn - 0.60
P - 0.030
S - 0.030
Cr 7.50 9.50
Ni - 0.60
Mo - -
N - -
Cu - 0.30

Mechanical properties of grade SUH1

Yield
Rp0.2 (MPa)		 Tensile
Rm (MPa)		 Impact
KV (J)		 Elongation
A (%)		 Reduction in cross section on fracture
Z (%)		 As-Heat-Treated Condition HBW
775 (≥) 364 (≥) 21 44 21 Solution and Aging, Annealing, Ausaging, Q+T,etc 114

Physical properties of grade SUH1

Property Density
kg/dm3		 Temperature T
°C/F		 Specific heat
J / kgK		 Thermal conductivity
W/mK		 Electric resistance
µΩ·cm
594 (≥) 947 (≥) 22 32 23 Solution and Aging, Annealing, Ausaging, Q+T,etc
Temp.
°C/°F		 Creep strain limit
(10000h)
(Rp1,0) N/mm2		 Creep rupture strength
(10000h)
(Rp1,0) N/mm2		 - - -
164 938 827 - - -

SUH1 Range of products
Product type Products Dimension Processes Deliver Status
Plates / Sheets Plates / Sheets 0.08-200mm(T)*W*L Forging, hot rolling and cold rolling Annealed, Solution and Aging, Q+T, ACID-WASHED, Shot Blasting

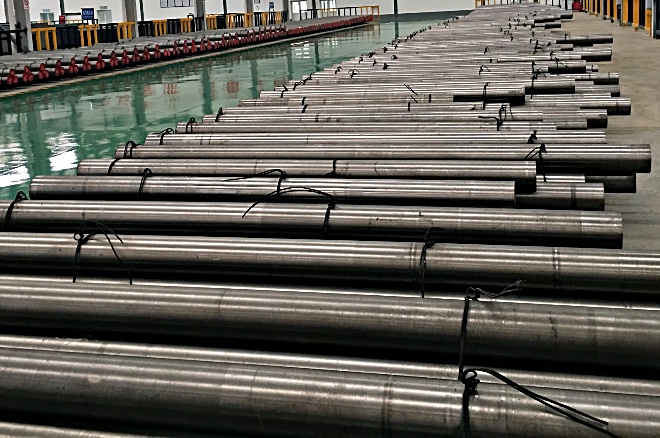

Steel Bar Round Bar, Flat Bar, Square Bar Φ8-1200mm*L Forging, hot rolling and cold rolling, Cast Black, Rough Turning, Shot Blasting,
Coil / Strip Steel Coil /Steel Strip 0.03-16.0x1200mm Cold-Rolled & Hot-Rolled Annealed, Solution and Aging, Q+T, ACID-WASHED, Shot Blasting
Pipes / Tubes Seamless Pipes/Tubes, Welded Pipes/Tubes OD:6-219mm x WT:0.5-20.0mm Hot extrusion, Cold Drawn, Welded Annealed, Solution and Aging, Q+T, ACID-WASHED
